Press Design
drive system: eccentric / crank
table cushion: no
Press forces
total force (nominal): 130 to
nominal work capacity: 1300 kNm
Press Table
table surface (left-right): 1200 mm
table surface (front-back): 700 mm
height above floor level: 900 mm
opening in bed (diameter): 220 mm
Slide
table surface (left-right): 740 mm
table surface (front-back): 540 mm
spigot hole diameter: 50 mm
stroke: 200 mm
stroke rate (max.): 55 /min
slide (mechan. Press)
slide adjustment: 100 mm
stroke min.: 16 mm
stroke max.: 200 mm
Tool Assembly Dimensions
shut height (stroke down, adjustment up), BDC: 360 mm
distance between columns (H-frame): 480 mm
Electrical specifications
total power consumption: 9.25 kW
mains voltage: 400 V
mains frequency: 50 Hz
Dimensions / weights
space requirements -left/right-: 1600 mm
space requirements -front/back-: 2100 mm
total height: 3320 mm
total weight approx.: 10000 kg
Attachments (presses)

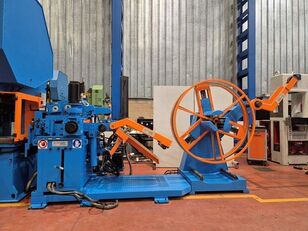

decoiler: optional
leveller unit: optional
strip feeder: optional
press automation: optional
2-hand engagement: yes
foot engagement: optional
European CE standards: yes
