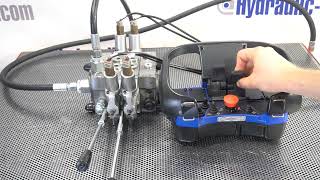

Razdelilnik vžiga Walvoil DPX100 + Scanreco G2B Mini 2 blazinici za gradbena mehanizacija

Walvoil DPX 100 hydraulic valve, 12/24V, with 2 proportional sections, on/off centre position and additional levers. The valve features a post-compensation range.

Scanreco G2B Mini 2-cushion, 12/24V.

This kit is configured for non-standard set-ups with 2 standard two-way functions. If you require a different specialised configuration, we can tailor it to your needs, including variations in coils, voltage, number of sections, anti-shock valves, connections, etc. The pressure relief valve can also be adapted as required. The coil type and flow rate can be individually tailored to your application. Please send us a diagram so that we can assist you further.

The kit is designed for plug-and-play operation. We take care of everything, from the connectors to the software configuration.

We offer technical support and can be contacted via email, WhatsApp and telephone.

If you have any questions or require assistance, please feel free to contact us at - or -.

Once the order has been placed, the flow rate and pressure can be fully adapted to the machine in accordance with the customer’s specific requirements.

---------------------------------------------------------------------------------------------------- ----------------------------------------------------------

Walvoil DPX 100 hydraulic sectional valve with compensation, fully proportional

Technical specifications of the standard configuration:

Inlet range: 32 GPM 120 l/min – Pmax 300 bar 4351 psi Power supply connection: 3/4‘ BPS, tank return connection: 3/4’ BPS

1. 40 L/min 10 GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever

2. 60 L/min 21 GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever

Outlet section: with the option to combine valves, including a vent valve (LS relief) and a pressure-reducing valve. Control connection “V” and drain connection “L” sealed. Side connections “T1”, “P1”, “LS1” sealed. DBV fixed and sealed to 175 bar at 90 L/min.


Scanreco G2B Mini with 2 levers


- 2 linear levers

- Stop function in accordance with EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, push-button switches and rotary switches

- Frequency bands: 433–434 or 902–928 MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Protection rating: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Wired control: standard length 10 metres / ~33 ft.

- G2B receiver with PWM, 12 or 24 VDC power supply

- Choice of wireless or wired control

- 8 bidirectional proportional outputs

- All analogue outputs are programmable for final speed adjustment

- 14 digital outputs (of which 1 is a combined input/output) and 4 digital inputs (of which 1 is a combined input/output)

- One DV output for controlling the drain valve

- Radio communication in the ISM band using frequency-hopping technology

- Manual mode to bypass the radio system, which provides only the DV output and enables manual control via the hydraulic manifold (if fitted).

- Programmable logic with block, soak, decelerate and ramp functions, and much more

- Please note that cable harnesses or connector sets are NOT included and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (excluding colour display)
