Center za strojno obdelavo C.B. Ferrari A186

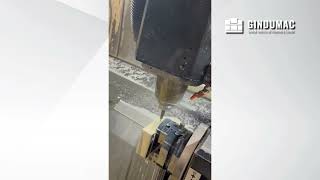

This 5-axis C.B. Ferrari A186 vertical machining center was manufactured in 2010. It features a table size of 525 × 2320 mm, X-axis travel of 1450 mm, and a maximum power of 40 kW. The machine includes a high-speed electrospindle capable of 20,000 rpm, ensuring efficient machining. If you are looking to get high-quality milling capabilities, consider the C.B. Ferrari A186 machine we have for sale. Contact us for more information about this machine.
Location: IT
brand: C.B. Ferrari
Table size: 525 × 2320 mm
T-slots: 14 × 70 (No. 6)
Feed rate (X): 0–40 m/min
Feed rate (Y/Z): 0–30 m/min
Rapid traverse (X): 40 m/min
Rapid traverse (Y/Z): 30 m/min
X: 6500 N
Y/Z: 15000 N
Linear scale resolution (X/Y/Z): 0.0001 mm
Positioning accuracy (X/Y/Z): 0.010 mm
Repeatability (X/Y/Z): 0.005 mm
Maximum power: 40 kW
Compressed air: minimum 6 bar
Operating temperature: 6–45 °C
Electrospindle “S”: 68 Nm
Resolver: Tamagawa
X-axis motor: 26.1 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–1640
Y-axis motor: 26.1 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–540
Z-axis motor: 27 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–440
A-axis: 300 Nm, 200 rpm; Encoder: Heidenhain RCN 729
B-axis: 27 Nm, 3000 rpm; Encoder: Heidenhain RCN 729
30-tool unit: 11 Nm, 3000 rpm; Encoder: Heidenhain ECN 413/512
Table
Feed rates and rapid traverse
Axis forces
Measurement and accuracy
Power
Electrical and utilities
Environmental conditions
Humidity
Spindle
With electronic converter
Drive motors and feedback
Additional axes (dividing units)
Tool magazine
